Mills dance master amp
by Hans Minderman 10 Apr '26

10 Apr '26

Hi All, I’m finishing up a Mills Dance Master, I have it all mechanically working and I’m now ready to work on the amp (an MCP 1644 amp). I have a schematic for it from the manual but it is not very useful because the caps and resistors are only marked with the mills ‘mcp’ catalog number and not with the actual values. The corresponding parts list has the same issue with just listing the Mills catalog numbers and not actual values. I checked with Bill Bickers at Jukebox friday night but he does not have a schematic with values or a rebuilt kit either. If anyone has a schematic or a listing of the caps and the resistors and choke for this amp please let me know. Thank you for your help. Hans Sent from Mail<https://go.microsoft.com/fwlink/?LinkId=550986> for Windows

4 3

Re: [Jukebox-list] AMI Continental 2 Microtecnica bias spring
by Federico Croci 22 Feb '24

22 Feb '24

Thanks!! > Il 17/01/2023 19:51, Chan Gade ha scritto: > Here it is on an arm in the I-200: > https://www.flickr.com/photos/90641375@N06/37325736231/ The hyperlink > probably won't get through, so copy/paste. > > Attached is a shot of the Continental 1 with counterweight. I did this > in 1986. It was necessary to cut off a small section of the mech dress > cap to clear the added counterweight. > > RobNYC -- Federico Croci wiz(a)tilt.it www.tilt.it

8 10

Scope for Wurlitzer Amplifiers?
by Shankar Singh 12 Dec '23

12 Dec '23

Hello, Is this a suitable scope to troubleshoot Wurlitzer amplifiers? Would a signal injector be required as well? https://www.amazon.com/Oscilloscope-Persistence-Measurement-Bandwidth-Gener… I have only done a few basic repairs and servicing, so am still a novice. If it can be helpful, would appreciate early response; there is time constraint to ask a friend to assist with the purchase. Many thanks 🙏 SHANKAR SINGH

4 9

WurliTzer 2900 Top Tunes Installation.
by Shankar Singh 30 Nov '23

30 Nov '23

Hello there! Hope you are all doing well. I believe I now have all the components for the Top Tunes feature installation - Control Unit, Golden Bar & switch assy and the Latch Pin Actuator Arc Assy. I would re-cap and test the other components in the Control Unit. Would appreciate some advice for the following: Tips for servicing the arc assy. Can something be turned by hand to test the unit?Or should I plug up and test the arc unit before installing it onto the selector pin-bank unit? Tips for installing the components. Any instructions available that can be shared? The T.T Control Unit has a 12-pin socket, which appears to be for the Golden Bar Switch. It also has a 4-pin socket that looks like one for the Slug Rejector plug. Is the Slug Rejector now plugged in here and a jumper required for the Slug Rejector socket at the Coin Mech/Playrack? Many thanks! SHANKAR SINGH

2 1

AMI E120 Gripper Arm Return
by Jamie McElroy 28 Nov '23

28 Nov '23

Hell all, can anyone help me with this problem please. When a even selection of a record is made the gripper arm returns the record to the proper slot it was selected from. However, when an odd selection is made and played, the gripper returns the record into the next slot on the record rack. This does not happen every time but 85% of the time it will when an odd selection is made. Any thoughts on this please. I'm going a bit crazy with it. Thank you for your help. Jamie

4 4

Re: AMI E120 Gripper Arm Return
by Nigel Pugh 28 Nov '23

28 Nov '23

> > On 28 Nov 2023 at 16:29, Nigel Pugh <pughn(a)npsyssoft.force9.co.uk> wrote: > > > > It's been ages since I worked on an E, but if the gripper pivot design is similar to the g to continental 2, an a or b side lug engaged into the back of the gripper casting, operated by a solenoid and a bracket assembly. > > I'm thinking in your case, is that engaged correctly on the b sides, because if it isn't, the gripper will likely wobble and probably shove the record back in the wrong slot. > > Nigel, uk > > > > > > > > > > > > > > On 28 Nov 2023 at 15:49, David Breneman via Jukebox-list <> wrote: > > > > > > On Tuesday, November 28, 2023 at 07:34:22 AM PST, Jamie McElroy via Jukebox-list <jukebox-list(a)lists.netlojix.com> wrote: > > > > > When a > > > even selection of a record is made the gripper arm returns the record to > > > the proper slot it was selected from. However, when an odd selection is > > > made and played, the gripper returns the record into the next slot on the > > > record rack. > > > > When the odd numbered selection is removed from the rack, does it dragalong the record rack divider? My memory of the component name isfailing me, but if the lever switch on the carriage, when it strikes the selectionlever for an odd numbered record, is in the wrong position it will stop thecarriage too early or too late to put the carriage in the right position toremove and replace the record. The only other thing that would cause itto be returned to the wrong rack position would be if the carriage movedbetween the time the record is removed and replaced, and since you didn'tmention that happening (and I can't envision a condition that would causethat) I'm assuming it's an alignment issue. > > > > > > > > _______________________________________________ > > Jukebox-list mailing list -- jukebox-list(a)lists.netlojix.com > > To unsubscribe send an email to jukebox-list-leave(a)lists.netlojix.com > > %(web_page_url)slistinfo%(cgiext)s/%(_internal_name)s > > Searchable Archives: http://jukebox.markmail.org/ >

3 5

Seeburg APFEA1 Mech Issue
by Jukebox Repairman 28 Nov '23

28 Nov '23

I currently have this machine in the shop and troubleshooting an issue. With credit on the machine, a selection is made but the add solenoid in the control center does not engage fully to open the motor control switch. With the power removed, the plunger moves freely manually with no drag or bind. If I manually scan the mech via the service switch, the solenoid engages and the mech goes fully into scan mode. It acts like the solenoid is only receiving a short pulse. Does this sound like a faulty service switch or contacts in the Electrical Selector? Regards, Rick

1 0

Wurlitzer 1400 cam wheel and pawl
by Tony Miklos 27 Nov '23

27 Nov '23

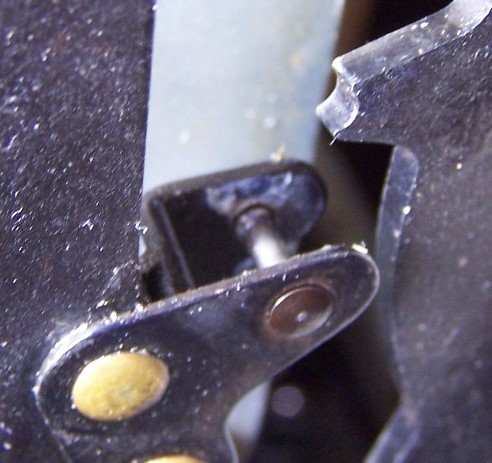

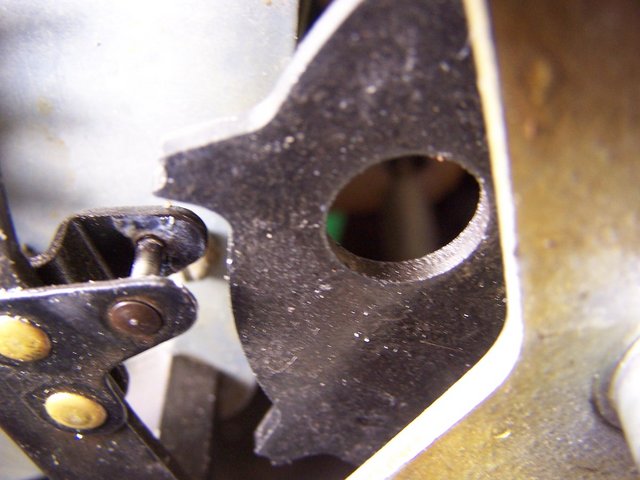

In this picture is part of the part #54394 "actuator lever & pawl assembly" and the #53410 "cam wheel". It appears to me that a roller should be on the pawl assembly, is this correct? https://i.postimg.cc/j2LfxyRW/101-9839.jpg https://i.postimg.cc/4yfK8MLR/101-9838.jpg

2 4

Re: Seeburg needles
by Jens Hultgren 25 Nov '23

25 Nov '23

Purple needles is sapphire ttbomk Den lör 25 nov. 2023 09:00 <jukebox-list-request(a)lists.netlojix.com> skrev: > From: Jim McClave <juker17(a)yahoo.com> > Subject: [Jukebox-list] Seeburg Needles > To: Jukebox Mailing List <jukebox-list(a)lists.netlojix.com > > Seeburg STD 4 has 2 purple needles installed. Looks like the original > cartridge. Im assuming the yellow needles are now the correct > replacements? Thanks , Jim > >

2 1

Seeburg Needles
by Jim McClave 24 Nov '23

24 Nov '23

Seeburg STD 4 has 2 purple needles installed. Looks like the original cartridge. Im assuming the yellow needles are now the correct replacements? Thanks , Jim

2 1
